Create Windows 10 Answer file

In a previous post we went through creating and deploying language packs there was an additional step to create a Windows 10 answer file, I though it might be helpful to do a post on creating a basic answer file using Windows System Image Manager (SIM).

First step is to install Windows Assessment and deployment kit (ADK). To download the latest ADK use the below link:

https://go.microsoft.com/fwlink/?linkid=2086042

UASelect deployment tools. UA2Once the install has finished, go to the start menu and down to Windows Kits and open Windows System Image Manager .

UA4

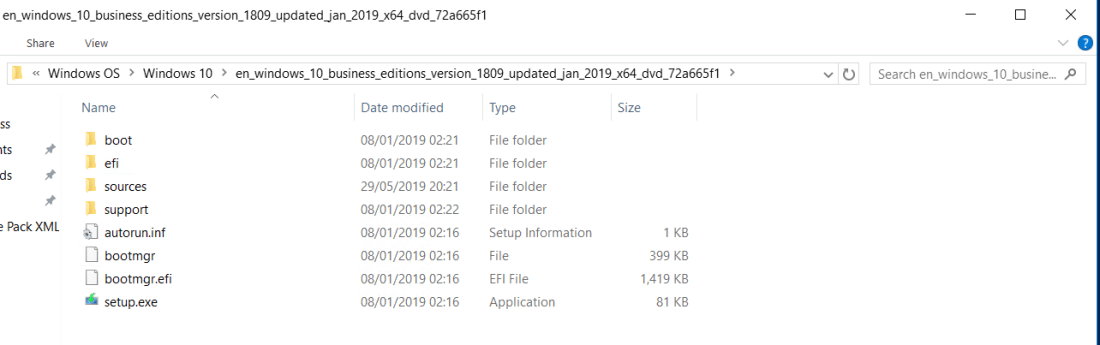

First step is to select a Windows image file, to get the image file just need to extra the required Windows ISO to a folder.UA5Below is the extracted ISO.UA12Go to Sources > install.wim.UA6Select the version.UA7Next create a new answer file.UA8Go to Windows Image

UA13

Select Components, on the components below is the different type and examples

amd_64 =64bit components, only used on x64 installs

wow_64 = 32bit components or support components for 32bit installed on x64, only used on x64 installs

x86 = 32bit components installed on x86, only used on x86 installs

I used “amd64_Microsoft-Windows-Shell-Setup_10.0.17763.1_neutral” > “OOBE” and click Add settings to Pass 7 oobeSystem.

UA9.pngEdit “amd64_Microsoft-Windows-Shell-Setup__neutral” to add in Register Owner and any other details as required.UA11Next edit the required OOBE settings.UA10Once all the settings have been added save the answer file.UA14Last step is to create a package for the answer file and apply the answer file in the SCCM task sequence.UA15

Below is the content of the XML file.

<?xml version=”1.0″ encoding=”utf-8″?>
<unattend xmlns=”urn:schemas-microsoft-com:unattend”>
<settings pass=”oobeSystem”>
<component name=”Microsoft-Windows-Shell-Setup” processorArchitecture=”amd64″ publicKeyToken=”31bf3856ad364e35″ language=”neutral” versionScope=”nonSxS” xmlns:wcm=”http://schemas.microsoft.com/WMIConfig/2002/State&#8221; xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance”&gt;
<OOBE>
<HideEULAPage>true</HideEULAPage>
<HideLocalAccountScreen>true</HideLocalAccountScreen>
<HideOEMRegistrationScreen>true</HideOEMRegistrationScreen>
<HideOnlineAccountScreens>true</HideOnlineAccountScreens>
<HideWirelessSetupInOOBE>true</HideWirelessSetupInOOBE>
<ProtectYourPC>3</ProtectYourPC>
<SkipMachineOOBE>true</SkipMachineOOBE>
<SkipUserOOBE>true</SkipUserOOBE>
</OOBE>
<RegisteredOwner>TheSleepyAdmin</RegisteredOwner>
</component>
</settings>
<cpi:offlineImage cpi:source=”” xmlns:cpi=”urn:schemas-microsoft-com:cpi” />
</unattend>



Deploying Microsoft LAPS Part 3

In the last post we went through deploying the LAPS agent using a script, GPO or SCCM. The next step is to configure the GPO settings to apply LAPS management policy’s

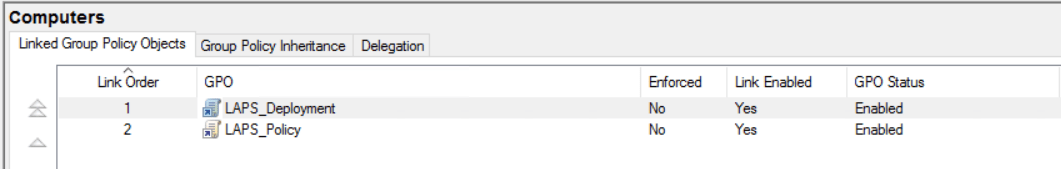

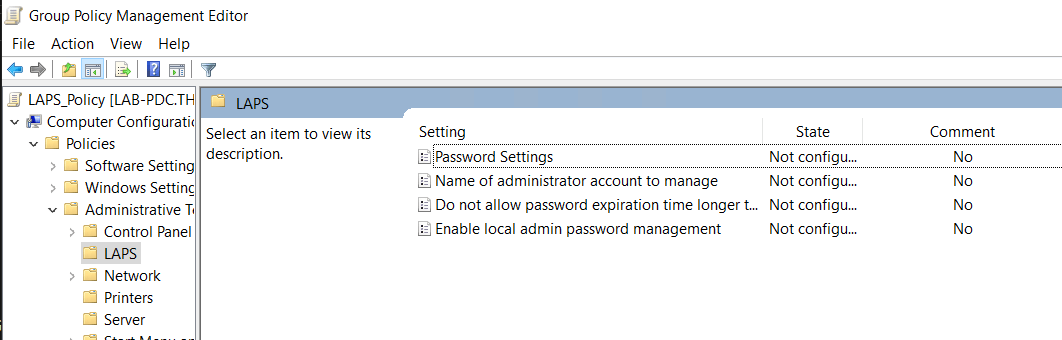

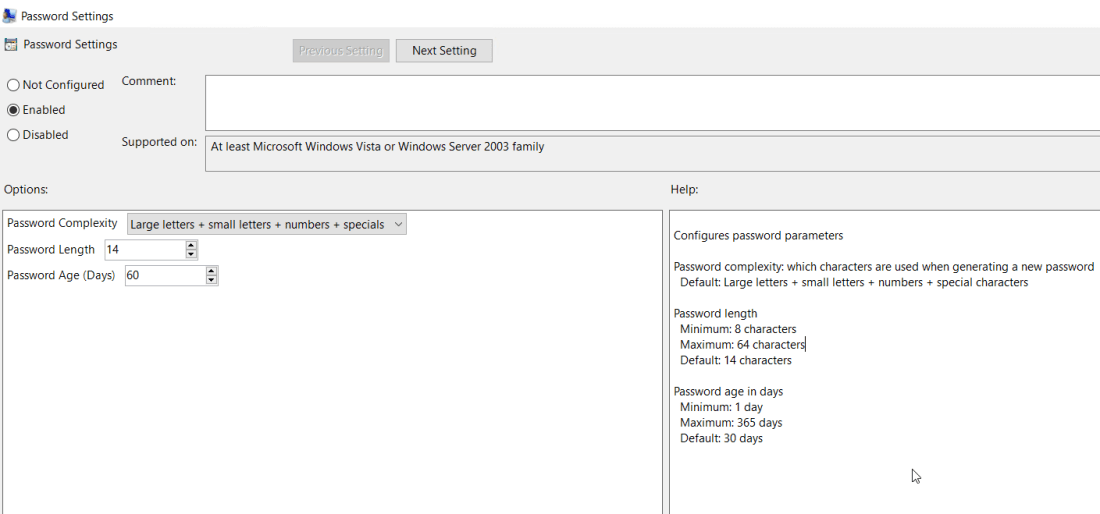

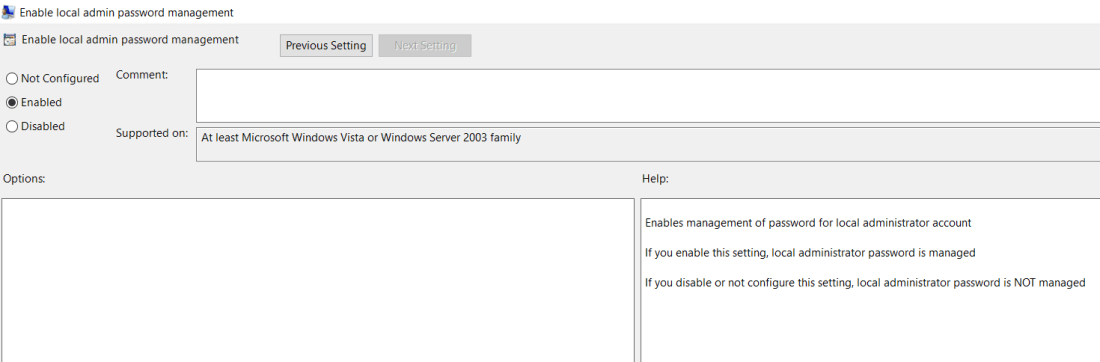

First, we create a new GPO to apply the LAPS management policy’s, the LAPS policy’s are under Computer Configuration > Polices > Administrative Templates > LAPS (If this doesn’t show the ADMX template is probable missing and will need to be installed. This can be done using the LAPS installer)LAPSGP1Password settings policy used to set the password complexity, length and ageLAPSGP2Specify the account that the password policy will apply to if this is the default administrator account this should be left at defaultLAPSGP3LAPSGP4Enabled management of local admin accountLAPSGP5Once the policy is configured apply the policy against the required OULAPSPass1To confirm that all settings are working, run a gpupdate on a test device. Once applied we can check the password in a few different ways

First way is to run PowerShell command:LAPSPass

Second way is to use the LAPS UI , this can be either used from the management server or installed on local computer using the LAPS installer and selecting the LAPS management tools

LAPSPass2LAPSPass3

The third method is to check the AD computer attribute ms-Mcs-AdmPwd:LAPSPass4

Last step is to set delegated access to a security group or set of users to view and reset the local administrator password. Use the below command to verify the current rights

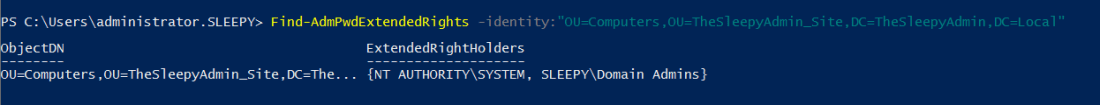

Find-AdmPwdExtendedRights -identity:OU distinguishedName

LAPSPass5There are two command to set the rights, one for read and one for reset rights

Set-AdmPwdReadPasswordPermission -OrgUnit OU distinguishedName -AllowedPrincipals “HelpDesk_LAPS_Access”

Set-AdmPwdResetPasswordPermission -OrgUnit OU distinguishedName -AllowedPrincipals “HelpDesk_LAPS_Access”

LAPSPass6Last step is to verify the permission have been appliedLAPSPass7

LAPS is now deployed and ready to use.
