VMware PowerCLI Module 12.4 Update Error

With the release of VMware PowerCLI 12.4 I was updating the module on my LAB servers so I could check out the new command.

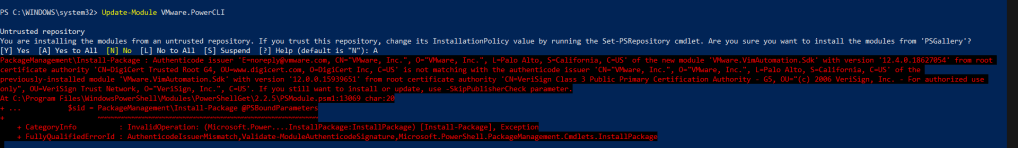

When upgrading I was getting the below error which is due to VMware changing the certificate authority used to publish the new module.

Authenticode issuer ‘E=noreply@vmware.com, CN=”VMware, Inc.”, O=”VMware, Inc.”, L=Palo Alto, S=California, C=US’ of the new module ‘VMware.VimAutomation.Sdk’ with version ‘’ from root
certificate authority.

In the release notes from VMware there is a know issue with the certificate. The fix is to remove and re-install the module.


I though I would do a quick post on this incase anyone doesn’t know the process.

To check where the module is installed run the below command.

Get-Module -ListAvailable VMware.PowerCLI
This image has an empty alt attribute; its file name is image-21.png

In my case the module was installed in C:\Program Files\WindowsPowerShell\Modules.

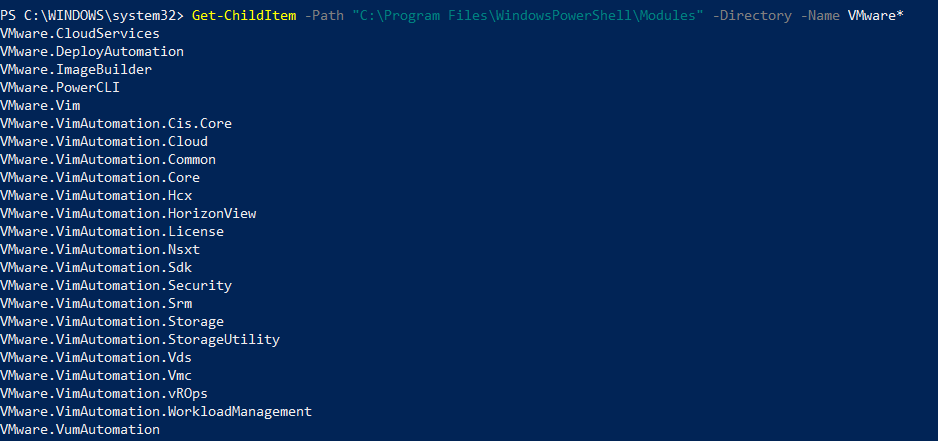

Next we need to remove the old modules, below is a list of the folders that make up the VMware PowerCLI 12.0 module.

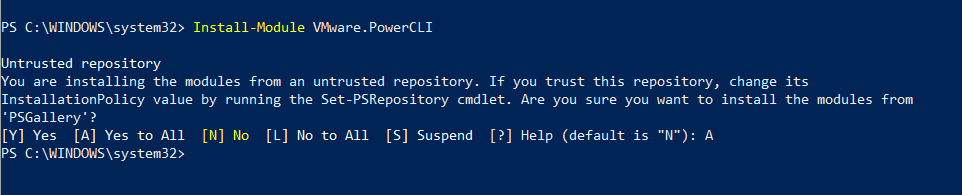

After removing the folder we now have to install the new module using Install-Module

Install-Module VMware.PowerCLI

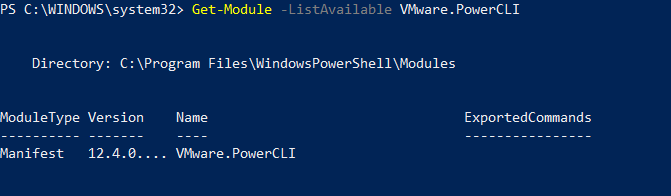

Once completed we should now have PowerCLI version 12.4

Using VMware PowerCLI Get-EsxCli

In this post we will be going through using the PowerCLI Get-EsxCli commandlet, which is used to call EsxCli command from PowerShell instead of having to SSH directly to the the ESXi host.

This can be useful when trying to gather information from multiple hosts instead of connecting on to each host with SSH or updating configuration settings.

First step is to connect to vCenter, once connected we can run the Get-EsxCli command and this will return the list of namespaces that can be use to gather information or set configuration settings.

We will be using -V2 as this sets Get-EsxCli to use version 2 interface as version 1 is being deprecated and will be removed in a later version.

Get-EsxCli -VMHost esxihost -V2

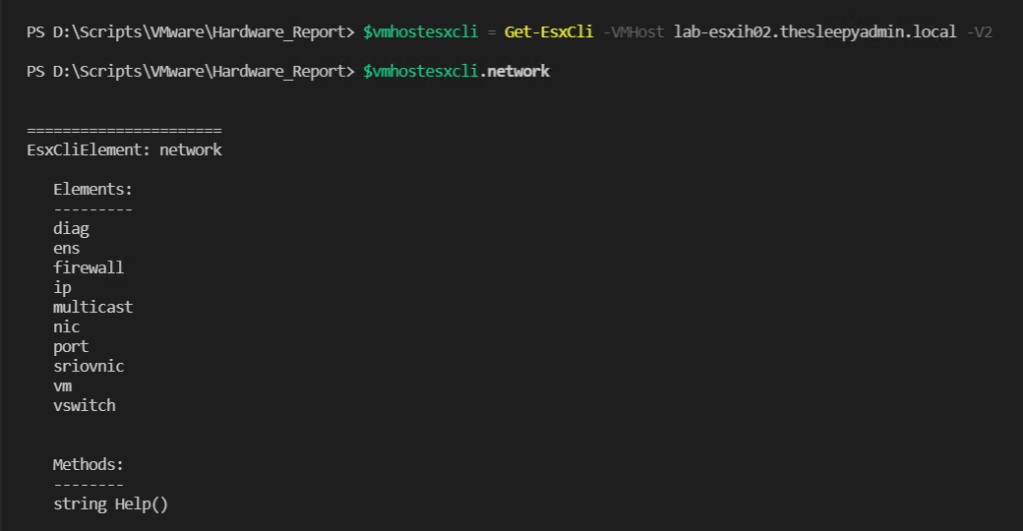

We can set the Get-EsxCli command to a variable so that we can call the namespaces, below will call the network namespace, once called there will be a list of addtiaonl namespaces that can be called.

$vmhostesxcli = Get-EsxCli -VMHost esxihost -V2

Once we select a namespace there should also be a list of methods that can be called these can be used to run specific actions like list or get to return information.

To list all nic’s we can call the nic and then list namespace

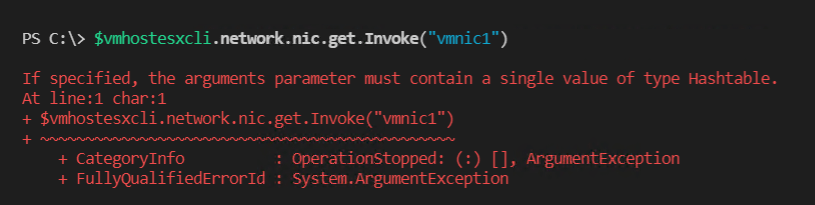

To gather info on details like driver version we can use the get method, in v1 you use to be able to call the nic name directly but if you try this in v2 the below error will be returned.

If specified, the arguments parameter must contain a single value of type Hashtable.

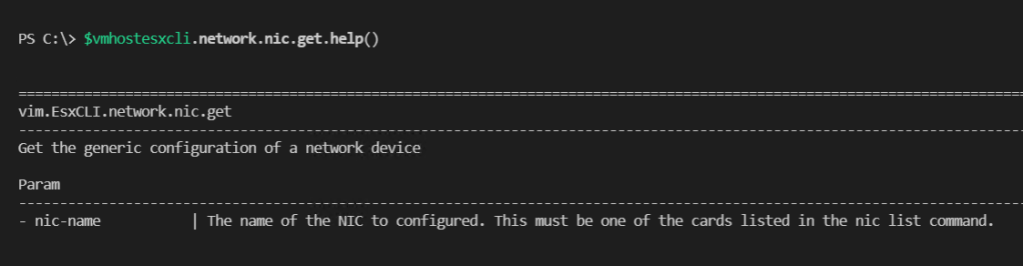

This is due to the method requiring a hash table parameter. If we call the help method it should return the valid parameters. If the parameter has a hyphens remove this or the command wont work.

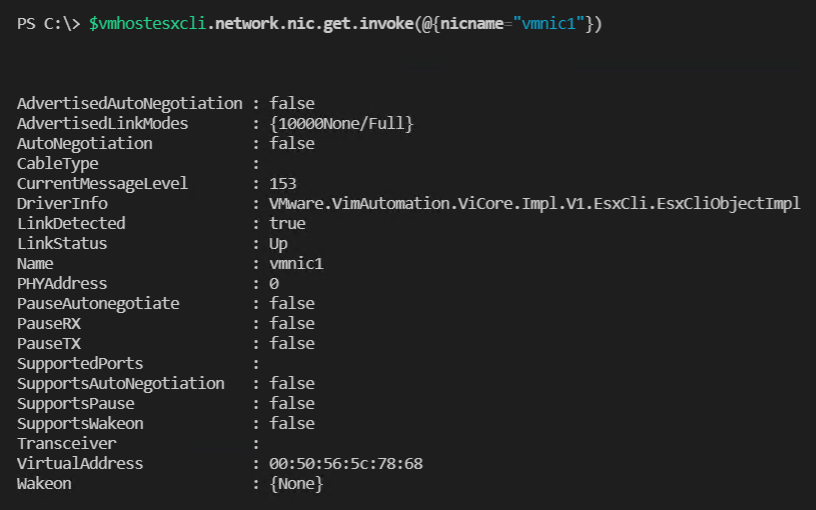

For the nic namespace the parameter is nicname and needs to be called as a hash table.


There might be some namespaces that have multiple properties like driverinfo under nic, these can be called by adding the property like below.


Now that we have the command we can start to build out a script to export information.

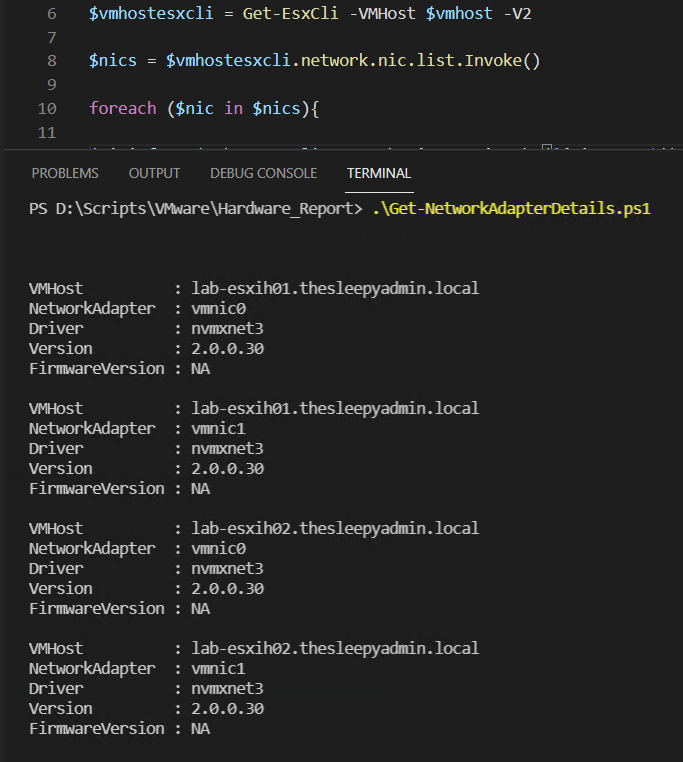

In this case we will be getting all hosts, listing all NIC’s and getting the drivers info.

The above shows that Get-EsxCli can be very good for retrieving information, if we wanted to set a configuration we can use similar command syntax but use the set method.

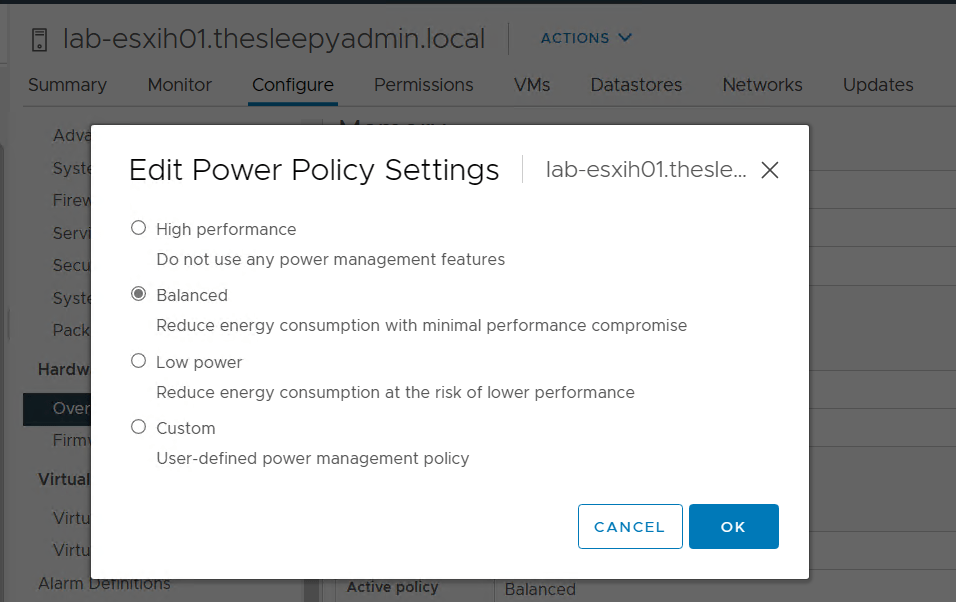

In this case we will update the Power policy settings on all host, we could do this manually by going to the Configure > Hardware > Overview > Power Management one each host and update the power policy settings

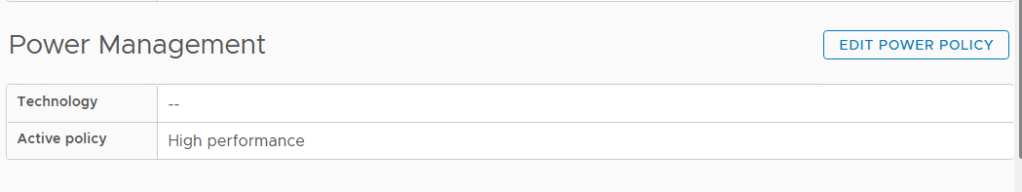

but doing this on a larger cluster is a lot of effort. To update using PowerCli we can first create the script to report on the current host power policy.

To update the policy settings we will use the set method like the below.


Below are the 4 different power policy’s.

IDPower Policy
1High Performance
3Lower Power

We can then take the above and create a re-usable script to report or set the power policy on all host in one go.

To download a copy of the either of the above script use the below link to my Github these can be used as reference if you want to create your own scripts for other settings.
