Month: August 2022

Microsoft Graph: Restrict Access Using Conditional Access Policy

In this post we will be going through setting up a conditional access policy to allow connection’s to a Microsoft App Registration that will be used for calling Microsoft GraphAPI from only certain countries / public IP’s.

Microsoft has a preview feature in Conditional Access for workload identities. A workload identity is an identity which allows an application or service principal access to resources.

When an App Registration is created, it will create a service principal. This service principal is what we will use in the conditional access policy.

First we need to create the named location to define where we want to allow the access from.

To create a named location go to endpoint management admin page.

https://endpoint.microsoft.com/

Go to Endpoint security > Conditional access.

MEM Admin Page

Once in Conditional access, go to Named location and add the required countries locations and or IP ranges.

Named locations

To add as single IP use /32 bit subnet mask.

IP range

Once we have the named locations we can create the Conditional access policy.

Go to the policies tab and click on new policy.

Policies page

Give the policy a name and set the assignment to workload identities.

Conditional access policy

Next select the service principal for the Graph App registration.

Users or workload selection

Next on Cloud apps or actions select, All cloud apps

Cloud apps or actions selection

Next we need to specify which location will be included, which we set to any location as we will use the exclude to allow access from the named location we will connect from.

Conditions selection

Next select the location that will be excluded from the policy in my case it will be the public IP we added earlier to the named location.

Excluded Locations

Next we set the access, I will be blocking access as I only want to allow access from the one public IP we specified in the excluded location.

Access selection

With any conditional access policy I would recommend setting the policy to Report-only to confirm that only the access that we excepted to be blocked is.

Policy settings enabled section

To check if the policy is applying correctly against the service principal we can check the sign-in logs.

First connect using Graph query and then go to sign-in logs.

MEM Admin Blade

Select service principal sign-ins.

Sign-in logs

Click on the request ID and look at the Report-only tab to see if the access would have been blocked or allowed.

Sign-in logs

Once we confirm that the policy is applying the correct access, the conditional access can be set to on.

Now once we try to connect from an IP or location not on the excluded list, it will be blocked from accessing.

Graph Connection

When we connect from an allowed location, we will get back the access token and be allowed to connect.

Graph Connection Token

When creating App registration we should look at access controls for these as this can be over looked and lead to a security risk, most application do not need access from any location and should be limited to only the require location or IP address to give greater access control.

Microsoft Graph: Restrict Exchange Online Mailbox Access

Recently we have been reviewing some of our old Exchange Web Service mailbox connections and updating these to use Microsoft Graph. We wanted to restrict what mailbox’s the Azure App registration used for Microsoft Graph could connect to.

To set this up in Exchange Online we can use an Application Access Policy. In this post we will be going through setting up and confirming the mailbox’s access.

I have gone through setting up Azure App registration for Microsoft Graph before so we wont be going through that in this post.

I will also be using certificate and Microsoft MSAL PowerShell Module to get the Graph access token.

See post below if you need to know how to connect using MSAL with certificate base authentication.

Connect to Microsoft Graph using MSAL and Certificate based Authentication

Once we have the app registration setup and certificate issued and uploaded to the app registration, we can then assign the GaphApi permission to access mailboxes.

If we don’t apply the permission we will get access denied.

Graph Message Access Error

I will be giving Mail.Read API permission, this will give access to view all mailboxes.

Graph API Permissions

Grant admin consent for the API permission.

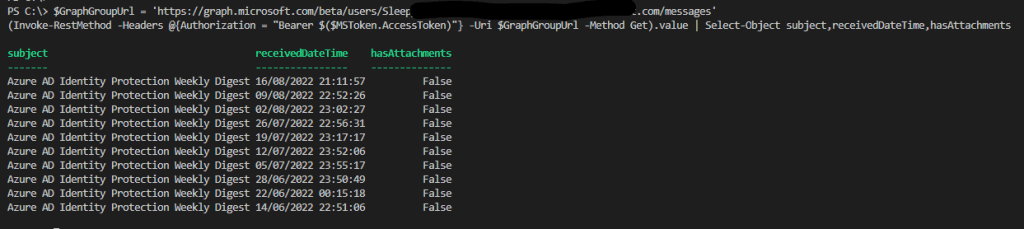

Now if we try to query the mailbox we should now be able to see the messages.

Graph Message Response

At this stage we can use the App registration to read messages from any mailboxes.

To lock this down so that the Graph query is only able to view certain mailboxes we can use

New-ApplicationAccessPolicy

to create an application access policy. The policy can be applied to a group or a single users.

To run the command, we will need Application ID of the app registration, mailbox or mail enabled security group and description. Using a group is useful if there are multiple mailboxes that they will need to allow access.

New-ApplicationAccessPolicy -AppId ApplicationID -PolicyScopeGroupId "user_group@domain.com" -AccessRight RestrictAccess -Description "Restrict this app to view mailbox or security group."

To run the command we need to connect to Exchange Online

Connect-ExchangeOnline

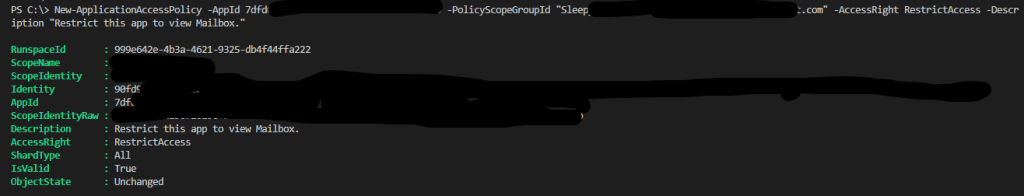

Then run the command to create the application access policy.

We can test what mailboxes the app registration can access using.

Test-ApplicationAccessPolicy -AppId ApplicationID -Identity user_group@domain.local

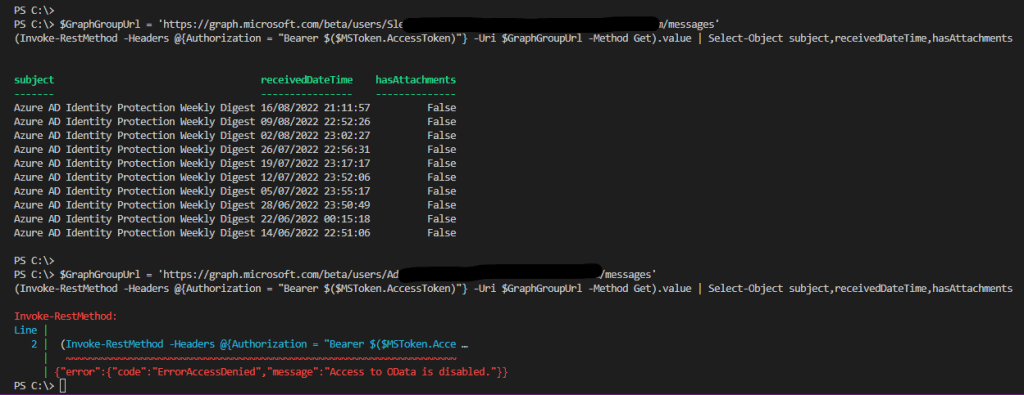

Now once we try to query the mailbox we have give access to we will see the message returned, if we try query any other mailbox we will an error message.

Applying the application access policy is a good idea for security as allowing an application to read mailboxes that it doesn’t need access to can be a risk if the app was ever compromised or there is sensitive data in mailboxes that no other users or application should have access to.
